Horizontal Bandsaw Series
Precision-focused cutting for workshops and fabrication units.
Performance Specifications
| Models | MSD-1HSA (PB 2) |
|---|---|
| Cutting Capacity Round | 200 mm |
| Cutting Capacity Square | 175 × 175 mm |
| Cutting Capacity Rectangle | 175 x 150 mm |
| Blade Size | 20/35/55/75 mtr/min |
| Gearbox | PB2 heavy duty |
| Saw Motor Capacity (hp) 415v ac, 50hz, 1400 rpm | 40 ltrs |
| Blade Tension | Manually |
| Job feeding function | Servo motor |
| Job feeding Stroke | 345 mm |
| Saw Motor Capacity 415v ac, 50hz, 1400 rpm | 1.5 hp |
| Hydraulic Motor Capacity 415v ac, 50hz, 1400 rpm | 0.5 hp |
| Coolant pump Capacity 415v ac, 50hz, 2800 rpm | 0.15 hp |
| Approx. Weight | 530 kg |
| Overall Dimension L x W x H | 1850 x 1450 x 1000 mm |
Machine Info

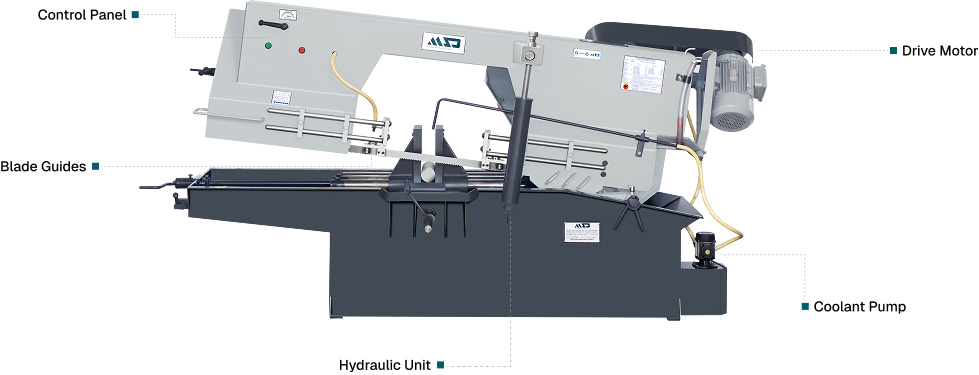

MSD-1HSA PB2 model is hydraulic fully-automatic bansdsaw machine with servo job feeding facility, which is used mainly in high productions workshops (use up to 12 hours per day). The saw band is driven by V-belt step pulley, induction 3 phase motor & 3 phase coolant pump and an oil-bath worm reduction gearbox.
Machine is equipped with the Single-sided swiveling arm with angle positioning to cut 90° material. A single acting hydraulic vice with job clamping ensure a parallel cut use of the bandsaw. The material clamping is done very easily by using a push button, whose movable jaw is guided by 2 hard chrome shafts and precise hydraulic cylinder. During cutting, the material can be effectively clamped by vice, Material feeding & lifting is carried out by hydraulic cylinder set by control panel PLC logic.
Accessories
Chip removing wire brush
Adjustable job roller stand (150mm material capacity)
Job roller stand 1 meter long
Bi-metal bandsaw blade
Features
Hard chrome shafts use in vice jaw for material better holding
Hard chrome shaft use in swivelling arm for better griping
Taper bearing use in gearbox assembly & sliding wheel assembly
7” Touch panel for all setup and all indication
Automatic oil lubrication system
Multiple length indexing for longer job (9 times)
PB2 heavy duty gear box for High efficiency
Servo motor for accurate job length feeding

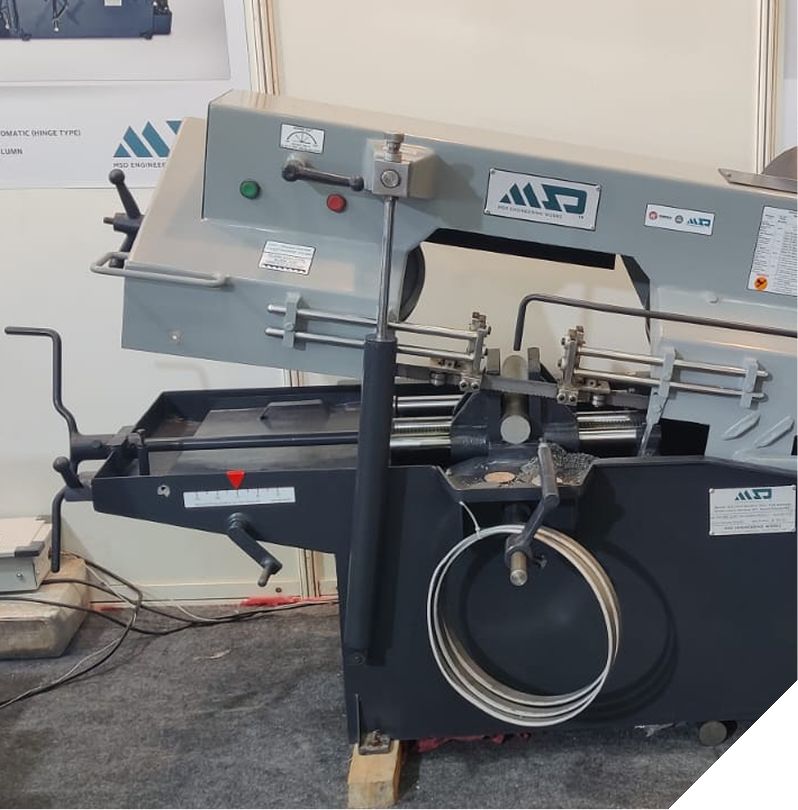

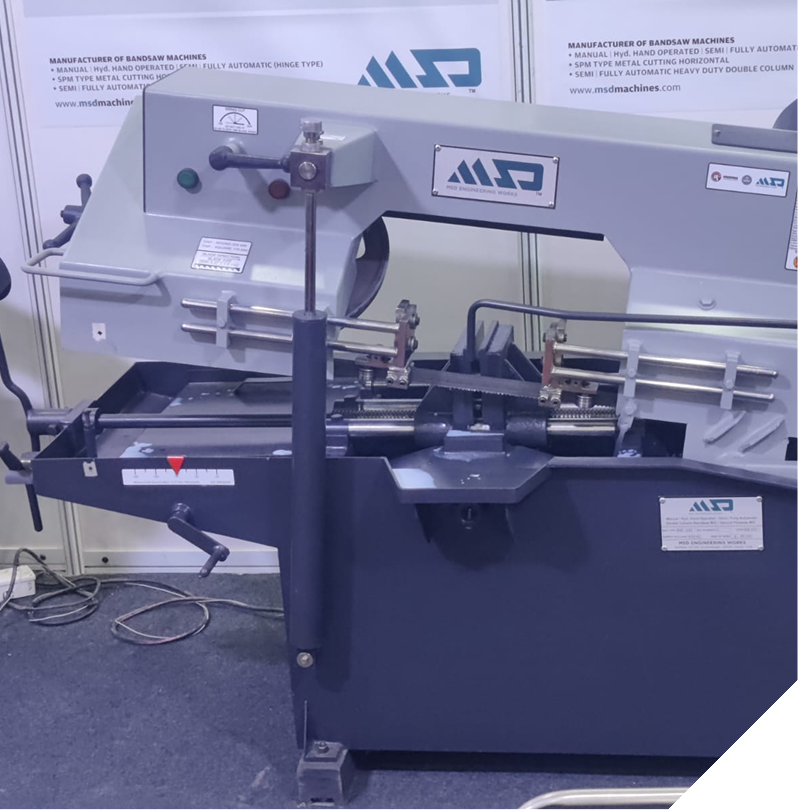

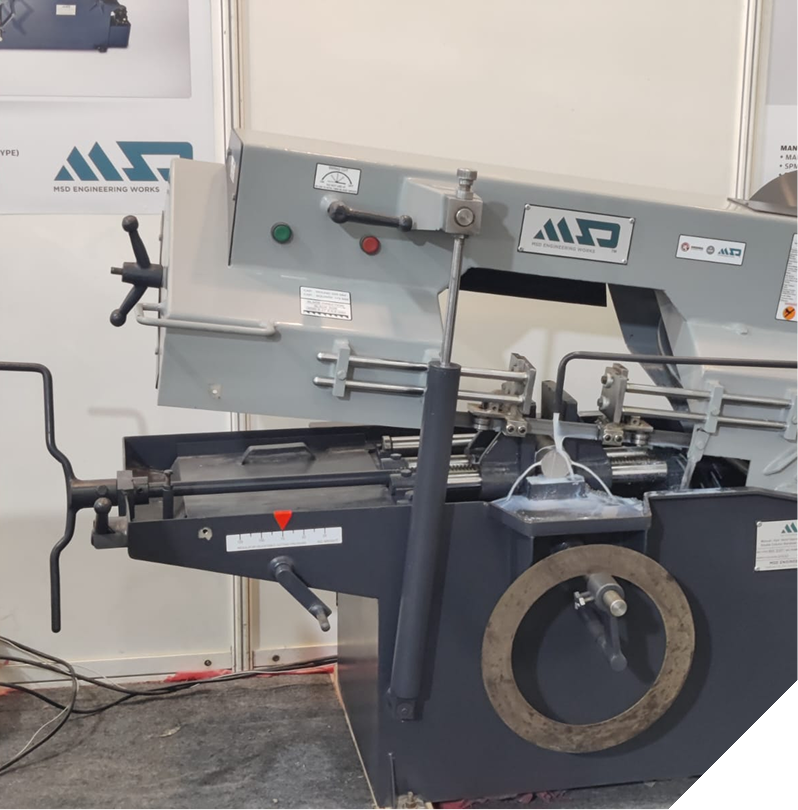

Photo Gallery
